Pulks on the Cheap #1

Once the cold weather sets in it can become very difficult to get our little guys out. Chariots and Burly ski systems are great ways to bundle your kid up and take them on a ski or hike, but those systems are very expensive. Most of us, however, already have enclosed bike trailers. These bike trailers can be cheaply converted into a pulk. I haven't finished this yet, but I've done the first step which is to attach the wheels of a bike trailer to skis.

But first, here is the original inspiration and end product of this bike-trailer-into-ski-pulk project.

http://www.akskedaddle.com/2011/10/repost-and-update-ski-pulk-diy.html

Here is what I came up with. The cradle for the wheel is a 2x4 (shaped to match the circumference of the wheel) sandwiched between 2 pieces of plywood. The skis are some old downhill skis I cut in half (Which is unfortunate because the tails had the word "RADICAL" written across them).

I drilled holes into the ski and fastened wood screws through the skis and into the wooden cradles.

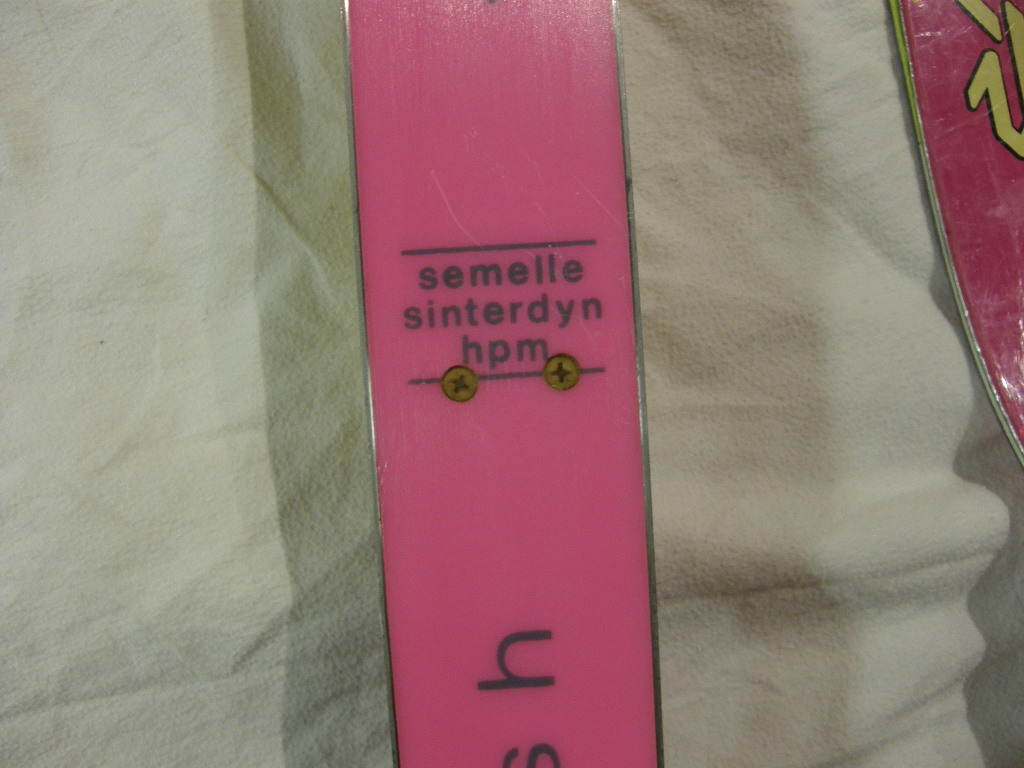

I filled the holes for the screws with epoxy, sanded them flush, and then hot waxed the entire base. I used this process to attach the hardware for a split board I made a couple of years ago and the epoxy holds really well and doesn't add any drag.

I used zip ties to attach the wheel to the cradle. Here are the holes drilled through the cradle to thread the zip ties to.

Here are the zip ties threaded around the rim of the wheel and trimmed.

And the final product.

I'm helping a friend with this and I only have the wheels to her bike trailer, so I can't show you what it all looks like with the skis on the trailer. Hopefully I will get another post up soon to show how we attach the bike trailer to a person, what the entire system looks like, how it well it's working, and tips for how to keep your kiddo toasty warm inside it.
